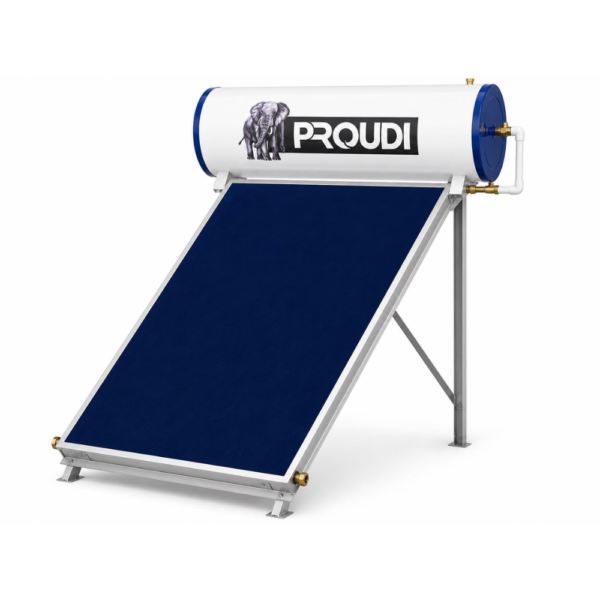

Proudi 200L Solar Water Heater – Complete System
The Proudi 200L Solar Water Heater Complete System is an efficient thermosiphon solar water heating solution designed to provide reliable hot water for homes, villas, and residential applications. It combines a 200-liter storage tank, high-efficiency solar collector, and electric backup heating for dependable hot-water supply.
Key Features & Specifications
- Model: HY200S
- Capacity: 200 Liters
- System Type: Thermosiphon Solar Water Heater
- Solar Collector: 1 high-efficiency panel
- Collector Area: 2.0 m²
- Absorber Type: Plate & Tube
- Absorber Material: Aluminum with highly selective vacuum coating
- Absorption Coefficient: 95% ± 1%
- Emission Coefficient: 5%
- Collector Casing: Durable aluminum
- Glass: 4 mm tempered glass for strength and durability
- Tank Material: Steel with protective layer
- Tank Insulation: High-density fiberglass wool for improved heat retention
- Maximum Operating Pressure: 10 bar
- Tank Outlet Temperature: Up to 65°C
- Tank Dimensions: 1530 mm (H) × 440 mm (D)
- Inlet/Outlet Connection: 3/4″ BSP
- Drain Connection: 3/4″ BSP
- Backup Heating: 3 kW electric heater
- Voltage: 220–240V, single phase
- Temperature Control: Double safety thermostat
- Safety Feature: Temperature and pressure relief valve
- Solar Kit & Fittings: Included
Benefits
- Efficient Solar Heating: Uses solar energy to heat and store hot water efficiently.
- 200L Storage Capacity: Suitable for regular residential hot-water requirements.
- Electric Backup: 3 kW backup heating provides additional hot water when solar energy is insufficient.
- Excellent Heat Retention: High-density fiberglass insulation helps minimize heat loss.
- Durable Construction: Aluminum collector casing and protective steel tank provide long-lasting performance.
- Enhanced Safety: Temperature and pressure relief valve with double safety thermostat.
- Easy Connections: Standard 3/4″ BSP inlet, outlet, and drain connections.
- Complete System: Supplied with the required solar kit and fittings.
Suitable Applications
- Residential homes
- Villas
- Apartments and residential buildings
- Daily domestic hot-water requirements
- Solar water heating installations
- Systems requiring electric backup heating
Delivery, Warranty & Maintenance
- Free Delivery Across the UAE
- Delivery Within 24 Hours
- Supply Only
- Installation Charges: Additional
- Warranty: 5 Years
- Free Maintenance: 1 Year
If extra labor is required or a crane is needed for lifting purposes, additional charges will apply.
